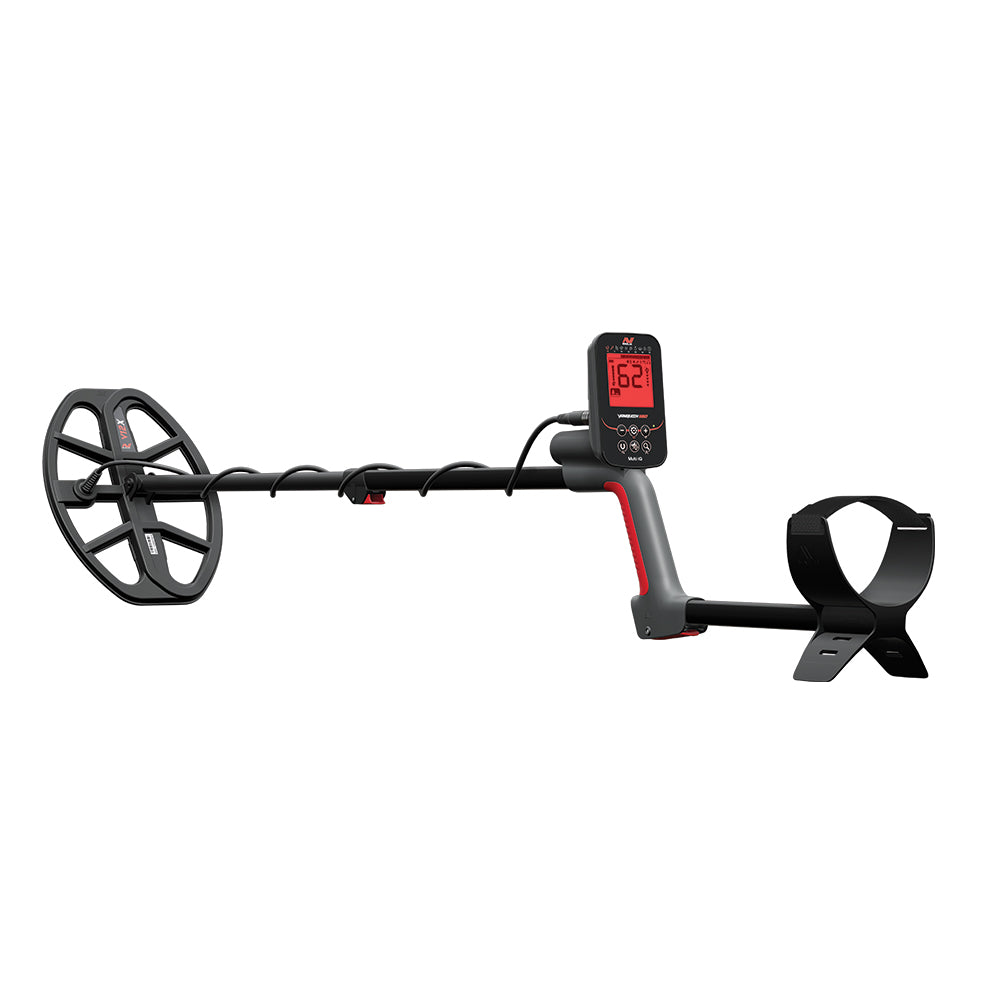

The VANQUISH® 560 PRO-PACK is the ultimate pack out for professional-level performance in a simplified, intuitive design. Powered by Minelab's proven Multi-IQ® technology, it scans across multiple frequencies at once for reliable target identification and faster target recovery in changing ground. With 30 discrimination segments, four levels of Iron Bias control and five audio tones, this detector makes it easy to separate trash from treasure. The VANQUISH 560 PRO-PACK includes both the V12X and V8X coils, providing options for wide coverage or precision in tighter ground. Fully waterproof up to 5 m (16 ft) with an IP68 rating, it's made to perform on beaches, lakes and wet terrain. A red LED monochrome display keeps visibility high in low light, while ML60 wireless earbuds with Bluetooth® LE Audio and handgrip vibration deliver rapid, uninterrupted signal feedback. Lightweight, compact and built to detect longer with up to 10 hours of battery life.
Search Modes
| Modes |
Beach, Park, Field |
| User Profile |
Yes |
| Custom User Search Profile |
Yes |
| Pinpoint |
Yes |
Detection Controls
| Operation Frequency |
Multi-IQ® |
| Sensitivity |
10 Levels |
| Noise Cancel |
Auto |
Audio Features
| Wireless Audio |
Bluetooth LE Audio (LC3 Codec) |
| Volume Control |
10 Levels |
| Ferrous Volume |
10 Levels |
| Target Tones |
5 Tones |
| Included Headphones |
ML60 Wireless Earbuds |
| Audio Output Options |
Built-in Loudspeaker, Wired 3.5 mm (1/8") Headphones, Bluetooth LE Audio |
Discrimination
| Discrimination Segments |
30 Segments |
| Target IDs |
Ferrous: -19 – 0, Non-Ferrous: 1 – 99 |
| Depth Indicator |
5 Levels |
| Iron Bias |
4 Levels |
Physical & Environmental

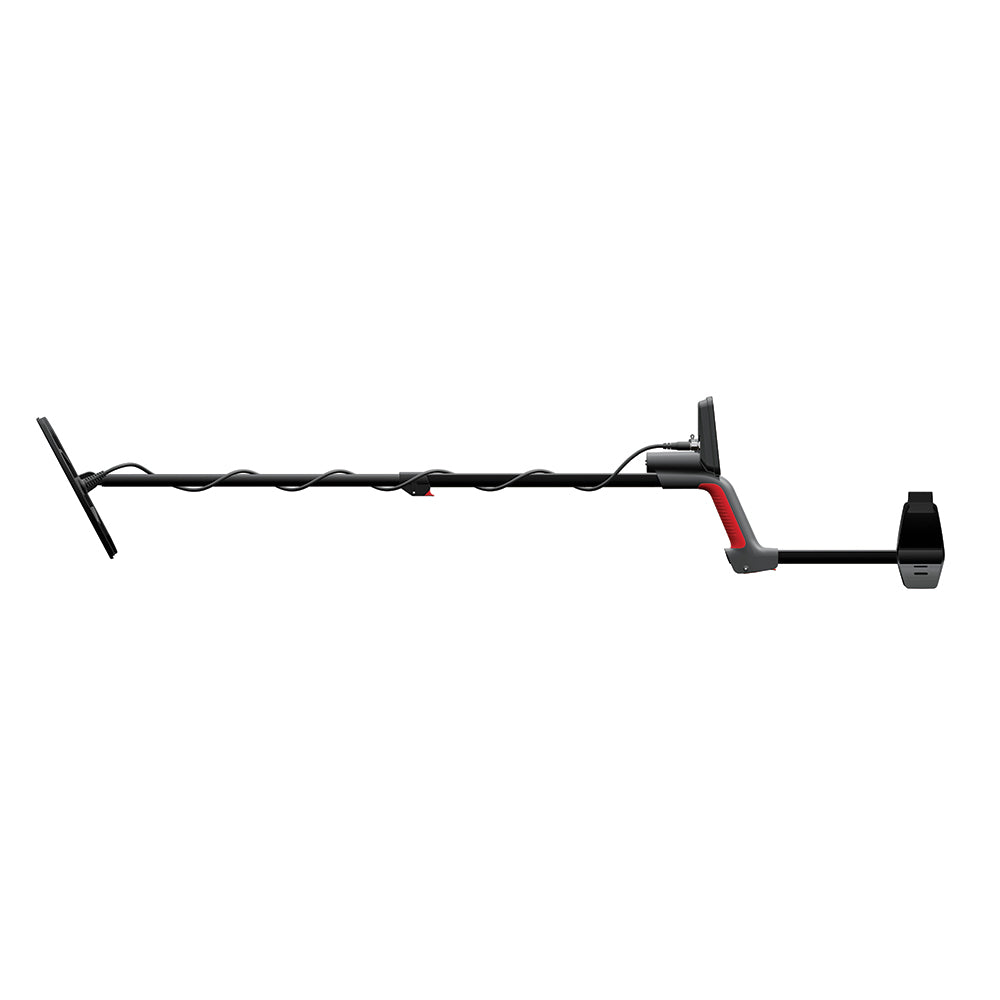

| Length (Extended) |
142 cm (56 in) |
| Collapsed |
79 cm (31 in) |
| Weight |
1.26 kg (2.6 lbs) |
| Operating Temperature Range |
-10°C – 40°C (+14°F – +104°F) |
| Storage Temperature Range |
-20°C – +70°C (-4°F – +158°F) |
| Waterproof |
IP68 up to 5 m (16 ft) |
Additional Features

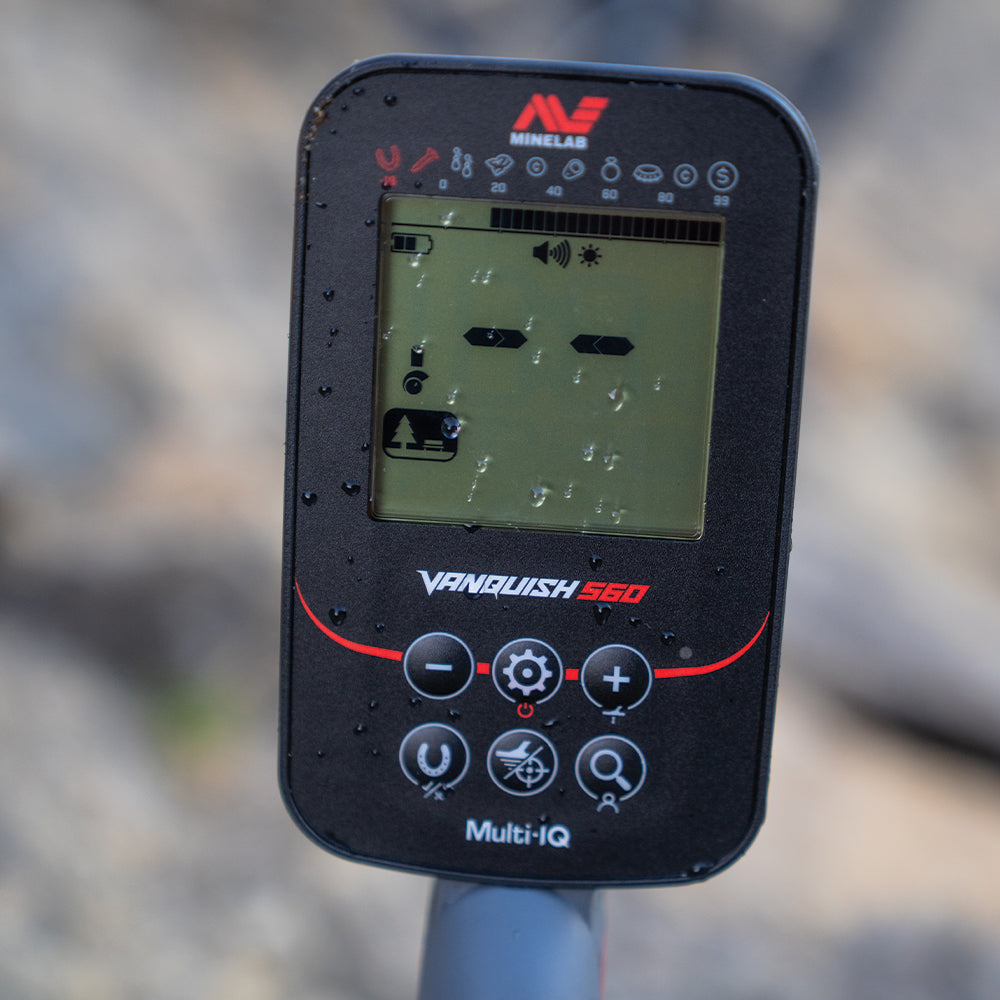

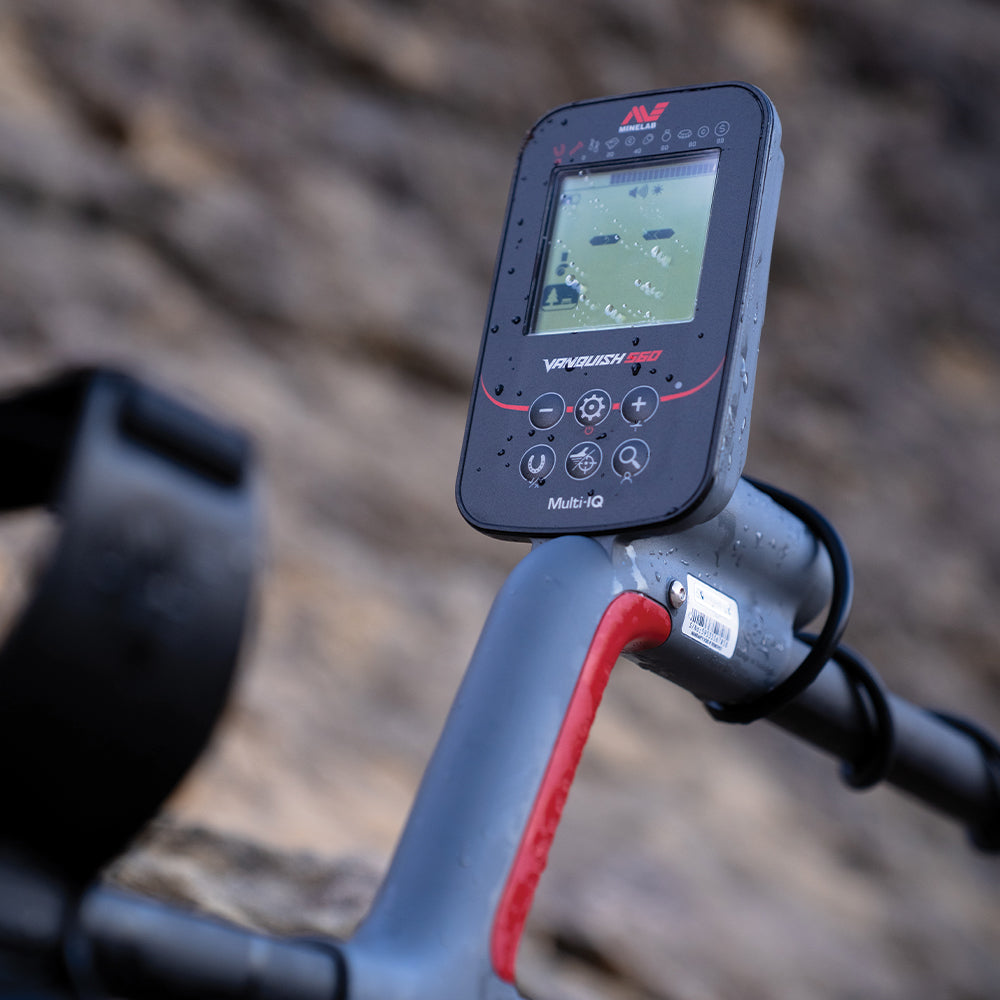

| Display |
Monochrome LCD |
| Display Backlight |
Yes |
| Keypad Backlight |
Yes |
| Flashlight |
Yes |
| Vibration |
Yes |
| Key Technologies |
Multi-IQ, Bluetooth LE Audio (LC3 Codec) |
| Warranty |
3 Years (Control Box and Coil) |
What's in the Box
| Standard Coil |
V12X 12" x 9" Double-D Elliptical |
| Supplied Batteries |
Internal Lithium-Ion Rechargeable |

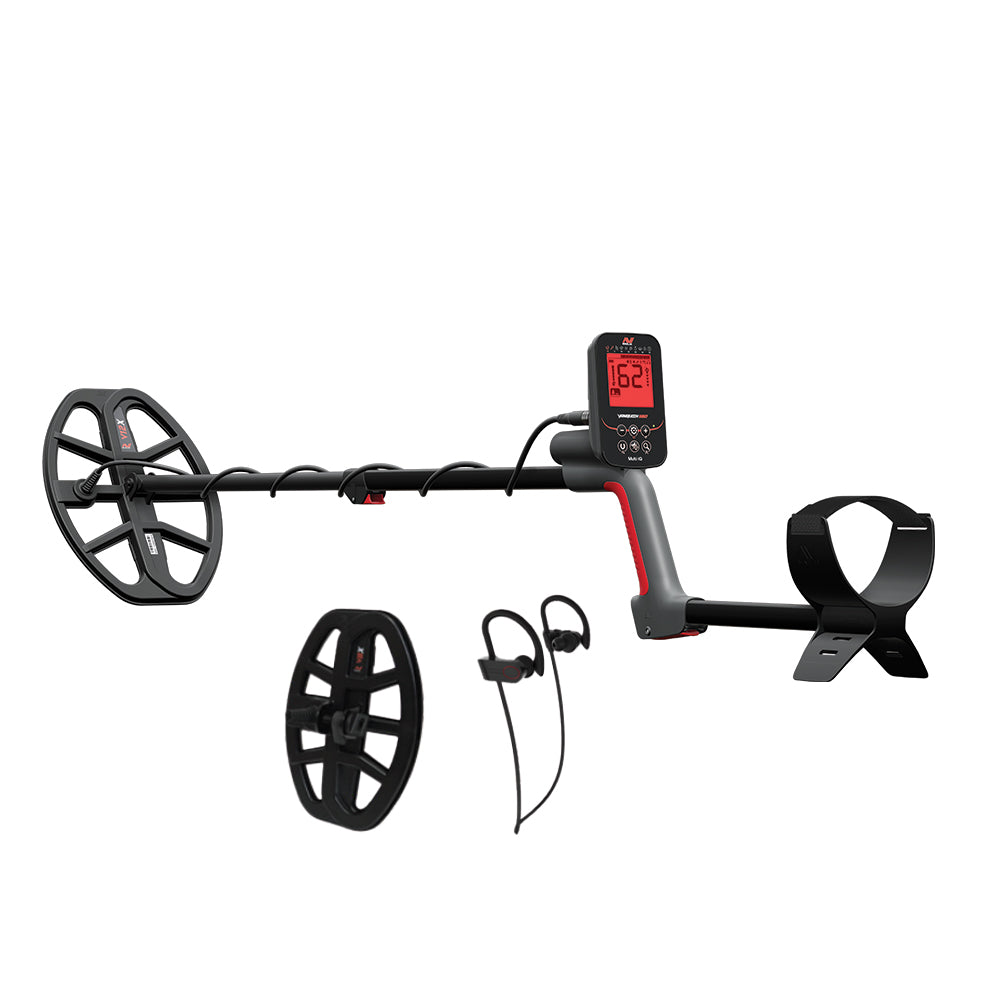

| Supplied Accessories |
V12X 12" x 9" Double-D Elliptical Coil, ML60 Bluetooth LE Ear Buds, V8X 8" x 5" Double-D Elliptical Coil |
