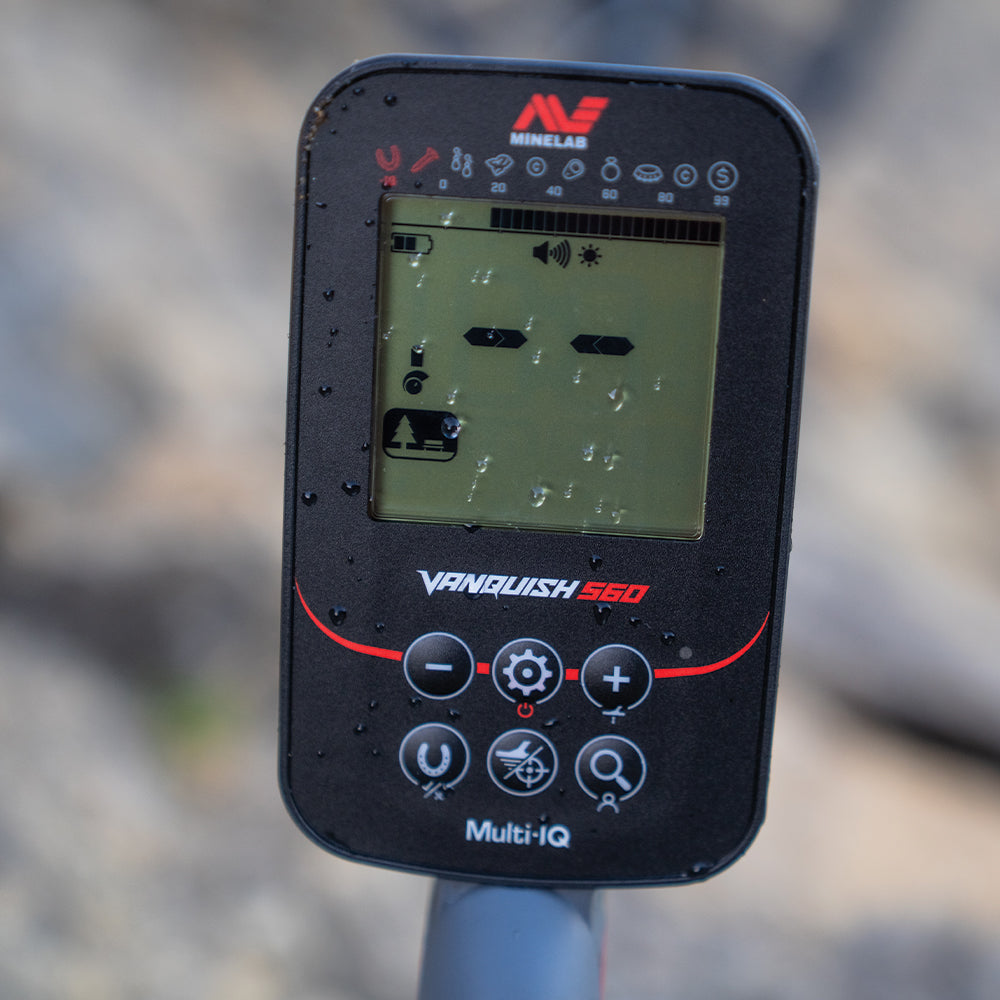

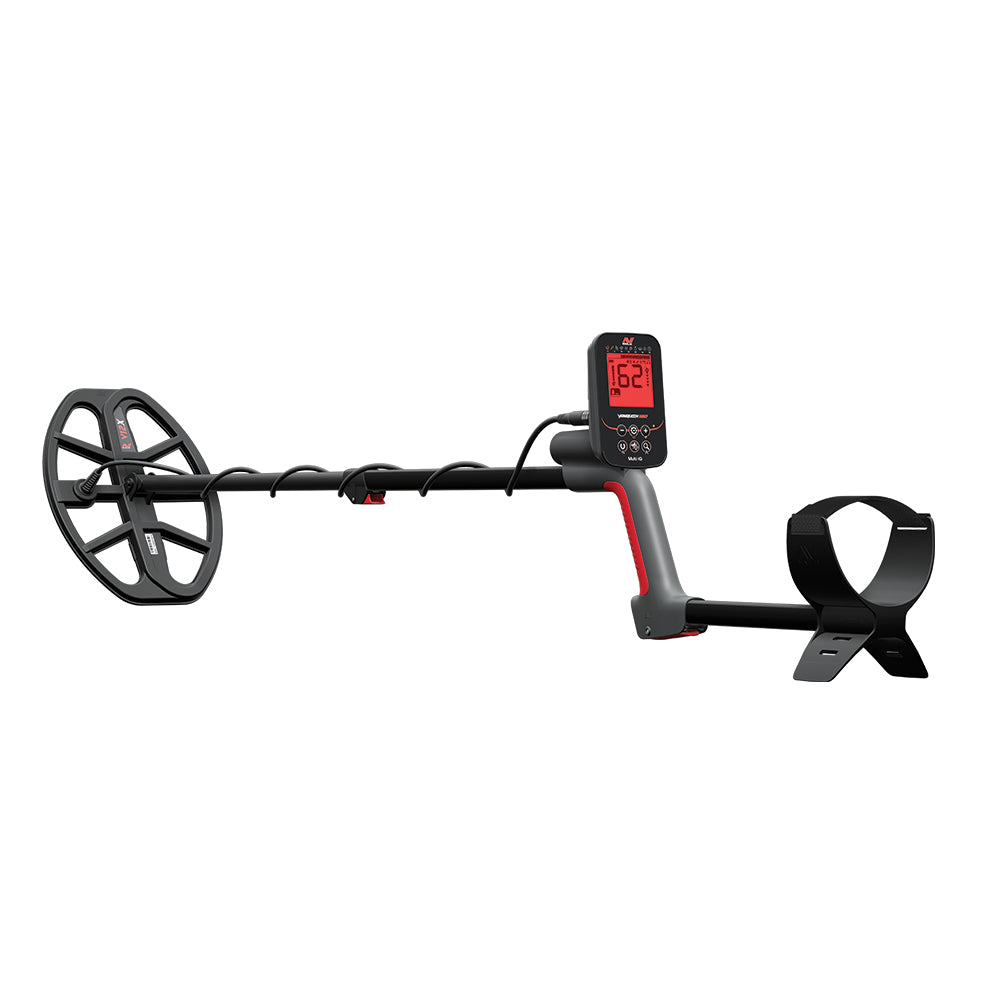

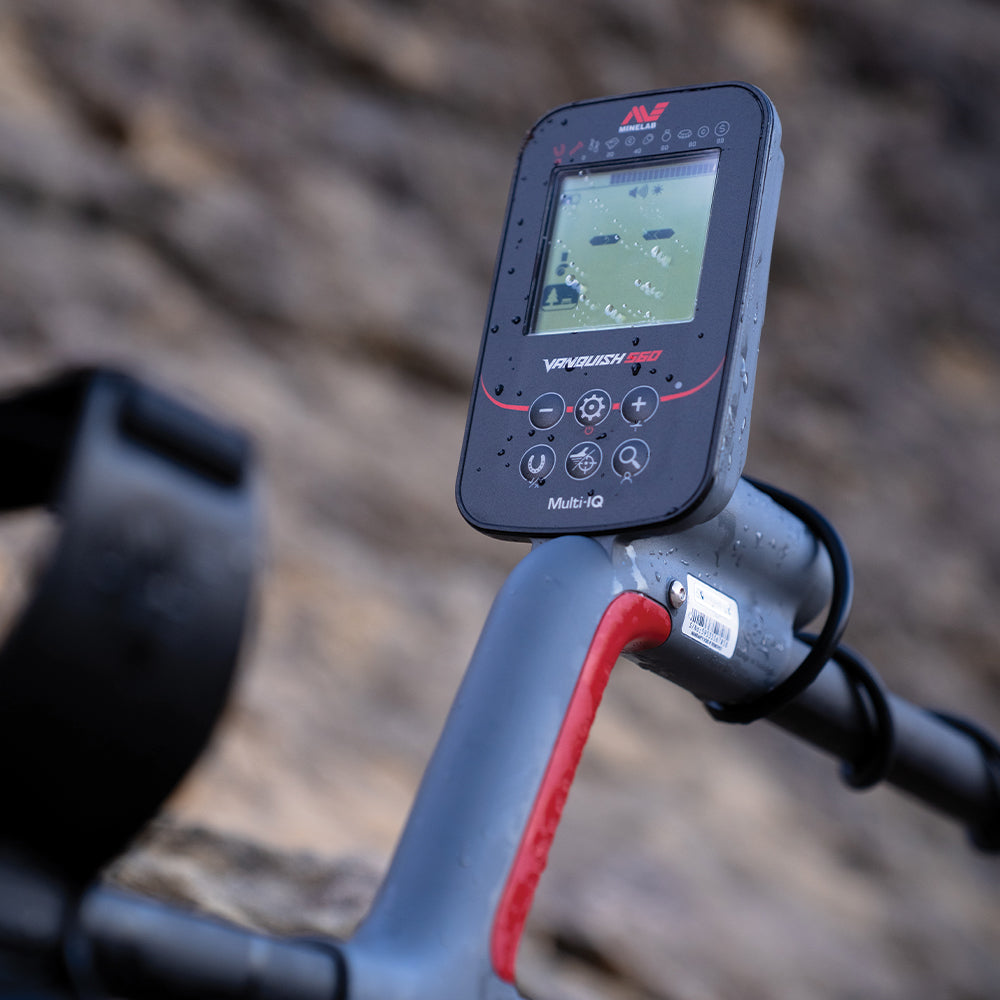

VANQUISH® 560 sets a higher standard in the series, delivering increased power, precision and control. With Minelab's proven Multi-IQ® technology at the core, it detects across multiple frequencies simultaneously for accurate target response and efficient recovery across variable ground. The V12X coil increases ground coverage and sensitivity, while four levels of Iron Bias control, five audio tones and handgrip vibration support isolation of valuable targets. IP68-rated and fully waterproof up to 5 m (16 ft), this lightweight and compact detector is ready for all terrains. VANQUISH 560 features a red LED monochrome display for enhanced visibility in low light, and delivers up to 10 hours of run time on a full charge. Bluetooth® LE Audio enables low-latency wireless performance, providing a serious detecting tool with intuitive handling and sharp response.
Search Modes
Modes
Beach, Park, Field
User Profile
Yes
Detection Controls
Operation Frequency
Multi-IQ®
Sensitivity
10 Levels
Noise Cancel
Auto
Audio Features
Wireless Audio
Bluetooth LE Audio (LC3 Codec)
Volume Control
10 Levels
Ferrous Volume
10 Levels
Target Tones
5 Tones
Audio Output Options
Built-in Loudspeaker, Wired 3.5 mm (1/8") Headphones, Bluetooth LE Audio
Physical & Environmental

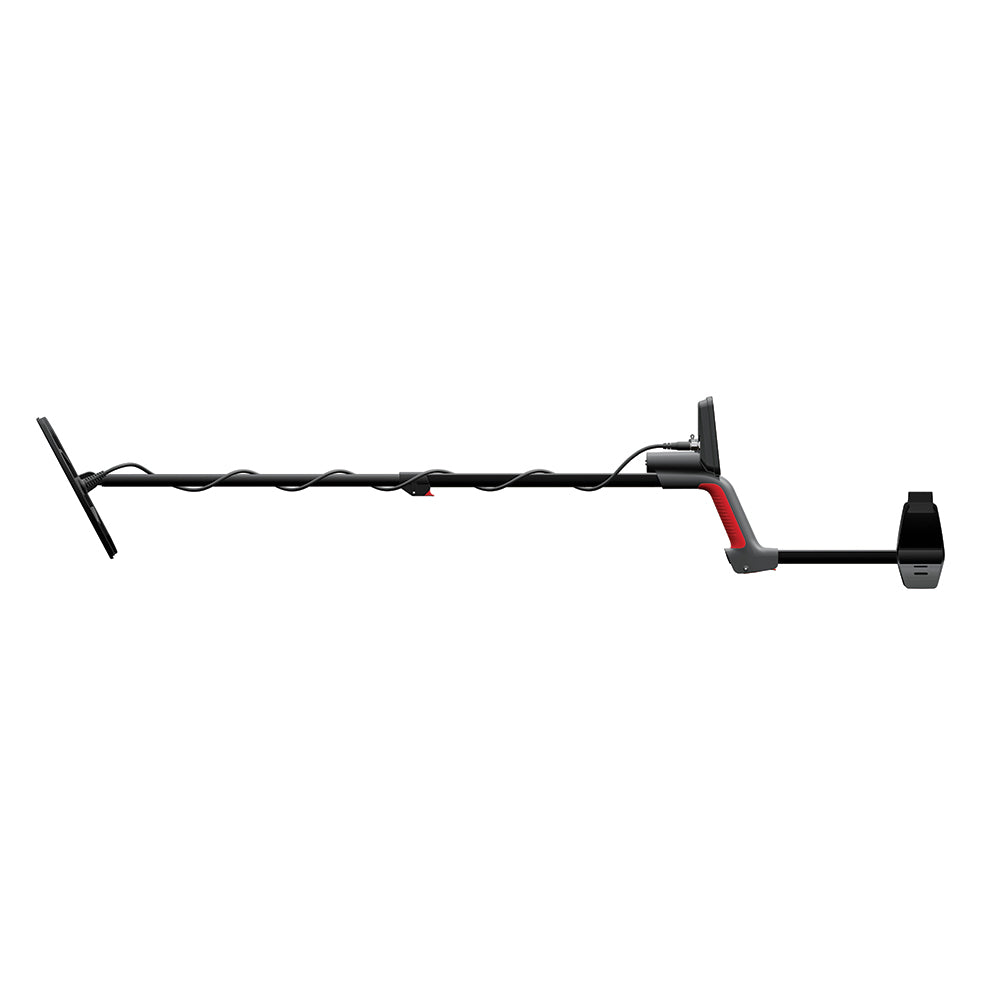

Length (Extended)
142 cm (56 in)
Collapsed
79 cm (31 in)
Weight
1.26 kg (2.6 lbs)
Operating Temperature Range
-10°C – 40°C (+14°F – +104°F)
Storage Temperature Range
-20°C – +70°C (-4°F – +158°F)
Waterproof
IP68 up to 5 m (16 ft)
Additional Features
Display
Monochrome LCD
Display Backlight
Yes
Keypad Backlight
Yes
Flashlight
Yes
Vibration
Yes
Key Technologies
Multi-IQ, Bluetooth LE Audio (LC3 Codec)
Warranty
3 Years (Control Box and Coil)
What's in the Box
Standard Coil
V12X 12" x 9" Double-D Elliptical
Supplied Batteries
Internal Lithium-Ion Rechargeable
Supplied Accessories
V12X 12" x 9" Double-D Elliptical Coil, Wired Headphones
